GUSTAV EDGE SERIES
Based on NVIDIA Jetson Plattform
Meet GUSTAV, for a new area of edge computing
REBOTNIX has been an NVIDIA verified partner in for over a decade, focusing on low energy solutions supported by NVIDIA’s Jetson. All GUSTAV are based on NVIDIA Jetson platform. In the following view we divide our units into their performance class of the GUSTAV Mini, AGX Orin, AGX Xavier, Orin Nano series.
GUSTAV-MINI
The GUSTAV MINI is the smallest embedded edge device we’ve developed. It comes in three variants: GUSTAV MINI GMSL supports two industrial GMSL cameras, GUSTAV MINI Network features robust IP connectors, and GUSTAV MINI Direct enables direct machine integration ideal for OEMs and robotics applications.

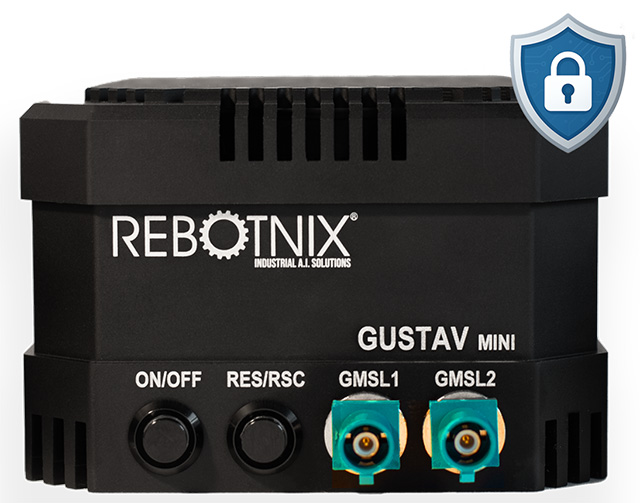

GUSTAV-MINI GMSL
GUSTAV-MINI NETWORK

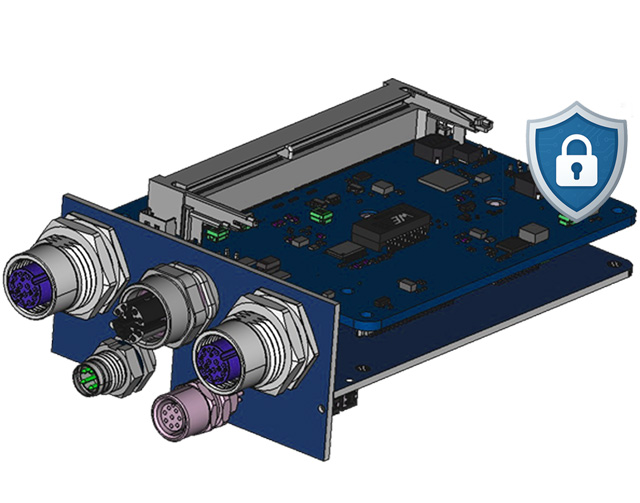

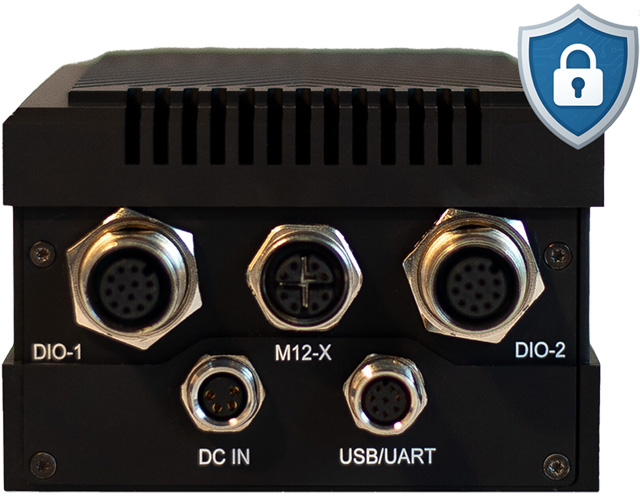

GUSTAV-MINI DIRECT
| GUSTAV-MINI GMSL | GUSTAV-MINI NETWORK | GUSTAV-MINI DIRECT | ||
| GPU (CUDA-Cores) | NVIDIA JETSON ORIN NANO OR NX | JETSON ORIN NANO OR NX | JETSON ORIN NANO OR NX | |
| AI Performance | 2 GMSL CAMERAS | GIGE | OEM PCB MACHINE & ROBOT INTEGRATION | |
| Power | 7-25 watts (depends on module) | 7-25 watts (depends on module) | 7-25 watts (depends on module) | |
| HW Cryptochip | YES | YES | YES |
GUSTAV-I3
Our GUSTAV-I3 has 3 USB Ports, options for high quality GPS from U-Blox, internal Wifi 2.4 GHZ. The system includes in the standard configuration 1 terabyte SSD, HDMI Port and hardware chip encryption.
GUSTAV-I3 with Orin NX
GUSTAV-I3 with Orin Nano
| GUSTAV-I3 with Orin NX 8GB & 16GB | GUSTAV-I3 with Orin Nano 4GB & 8GB | ||
| GPU (CUDA-Cores) | 1024 CUDA cores and 32 tensor cores | 512 CUDA cores and 16 tensor cores | |
| AI Performance | 70 TOPS (8GB) 100 TOPS (16GB) | 20 TOPS (4GB) 40 TOPS (8GB) | |
| Power | 10-25 watts | 7-10 watts | |
| HW Cryptochip | YES | YES |
GUSTAV-I7
Our GUSTAV-I7 has 3 USB Ports, options for high quality GPS from Ublox, internal Wifi 2.4 GHZ. The system includes in the standard configuration 1 terabyte SSD, HDMI Port and hardware chip encryption.
GUSTAV-I7 with Jetson Orin NX
GUSTAV-I7 with Jetson Orin Nano
| GUSTAV-I7 with Orin NX 8GB & 16GB | GUSTAV-I7 with Orin Nano 4GB & 8GB | ||
| GPU (CUDA-Cores) | 1024 CUDA cores and 32 tensor cores | 512 CUDA cores and 16 tensor cores | |
| AI Performance | 70 TOPS (8GB) 100 TOPS (16GB) | 20 TOPS (4GB) 40 TOPS (8GB) | |
| Power | 10-25 watts | 7-10 watts | |
| Hardware Cryptochip | YES | YES | |
| NVIDIA Jetpack | Jetpack 5.1.x – and Jetpack 6.x | Jetpack 5.1.x – and Jetpack 6.x |
GUSTAV AGX Orin Series
GUSTAV AGX Orin Nvidia Jetson AGX Orin and AGX Xavier with module support from 32 gigabytes up to 64 gigabytes of ram. We offer dual 10 GigE devices as well single 1 GigE boxes for the AGX Orin serie and only 1 GigE for AGX Xavier modules. All products are flashed with an optimized Jetpack of your choice.
GUSTAV AGX Orin (10 GigE)
GUSTAV AGX Orin (1 GigE)
| GUSTAV Orin 10G Specifications | AGX Orin 32 or 64 GB | 2 x 10 GigE | AGX Orin 32 or 64 GB | 2 x 1 GigE |
| GPU (CUDA-Cores) | 1792 – 2048 | 1792 – 2048 |
| AI Performance (TOPS) | 200 – 275 | 200 – 275 |
| Power | 15-60 Watts | 15-60 Watts |
| Has cryptochip | PLANNED | YES [ Datasheet ] |
RB-SDK Powerful Software
We support a variety of tools for NVIDIA Jetson platform. Learn more about our software development kits.
Products are sold by our distribution channel of silicon highway.
