GUSTAV EDGE
Reliable, proven and sophisticated hardware.
Powerful GUSTAV

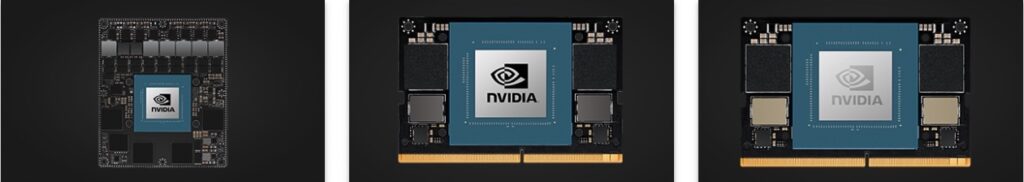

REBOTNIX has been an NVIDIA verified partner in for over a decade, focusing on low energy solutions supported by NVIDIA’s Jetson. All GUSTAV are based on NVIDIA Jetson platform. In the following view we divide our units into their performance class of the GUSTAV AGX Orin, AGX Xavier, Orin Nano series.
GUSTAV-I7
Our GUSTAV-I7 has 7 USB Ports, options for high quality GPS from Ublox, internal LTE or Wifi. The system includes in the standard configuration 1 terabyte SSD, GPIO, CAN Bus, GPS WheelTick and direction, Display Port and hardware encryption.
GUSTAV-I7 with Orin NX
GUSTAV-I7 with Orin Nano
GUSTAV-I7 with Xavier NX
GUSTAV-I7 with Orin NX 8GB & 16GB | GUSTAV-I7 with Orin Nano 4GB & 8GB | GUSTAV-I7 with Xavier NX 8GB & 16GB | |
GPU (CUDA-Cores) | 1024 CUDA cores and 32 tensor cores | 512 CUDA cores and 16 tensor cores | 384 CUDA cores and 16 tensor cores |
AI Performance | 70 TOPS (8GB) 100 TOPS (16GB) | 20 TOPS (4GB) 40 TOPS (8GB) | 21 TOPS (8GB & 16GB) |
Power | 10-25 watts | 7-10 watts | 10 – 20 watts |
HW Cryptochip | YES | YES | YES |
GUSTAV-I3
Our GUSTAV-I3 has 3 USB Ports, options for high quality GPS from Ublox, internal Wifi 2.4 GHZ. The system includes in the standard configuration 1 terabyte SSD, HDMI Port and hardware chip encryption.
GUSTAV-I3 with Orin NX
GUSTAV-I3 with Orin Nano
GUSTAV-I3 with Xavier NX
GUSTAV-I3 with Orin NX 8GB & 16GB | GUSTAV-I3 with Orin Nano 4GB & 8GB | GUSTAV-I3 with Xavier NX 8GB & 16GB | |
GPU (CUDA-Cores) | 1024 CUDA cores and 32 tensor cores | 512 CUDA cores and 16 tensor cores | 384 CUDA cores and 16 tensor cores |
AI Performance | 70 TOPS (8GB) 100 TOPS (16GB) | 20 TOPS (4GB) 40 TOPS (8GB) | 21 TOPS (8GB & 16GB) |
Power | 10-25 watts | 7-10 watts | 10 – 20 watts |
HW Cryptochip | YES | YES | YES |
GUSTAV AGX Orin Series
GUSTAV AGX Orin Nvidia Jetson AGX Orin and AGX Xavier with module support from 32 gigabytes up to 64 gigabytes of ram. We offer dual 10 GigE devices as well single 1 GigE boxes for the AGX Orin serie and only 1 GigE for AGX Xavier modules. All products are flashed with an optimized Jetpack of your choice.
GUSTAV AGX Orin (10 GigE)
GUSTAV AGX Orin (1 GigE)
GUSTAV AGX Xavier (1 GigE)
GUSTAV Orin 10G Specifications | AGX Orin 32 or 64 GB | 2 x 10 GigE | AGX Orin 32 or 64 GB | 2 x 1 GigE | AGX Xavier 32 or 64 GB | 2 x 1 GigE |
GPU (CUDA-Cores) | 1792 – 2048 | 1792 – 2048 | 512 |
AI Performance (TOPS) | 200 – 275 | 200 – 275 | 32 |
Power | 15-60 Watts | 15-60 Watts | 10 – 30 |
Has cryptochip | PLANNED | YES [ Datasheet ] | YES [ Datasheet ] |
GUSTAV Orin 1 (GigE) Series
GUSTAV Orin Series is based on NVIDIA Jetson SoC (System on a chip) modules. GUSTAV Orin is the ideal solution for applications from manufacturing and logistics to retail and healthcare.
GUSTAV Xavier NX
GUSTAV Orin Nano
GUSTAV Orin Specifications | Xavier NX 8 GB | Xavier NX 16 GB | Orin Nano 4 GB | Orin Nano 8 GB |
GPU (CUDA-Cores) | 384 | 384 | 512 | 1024 |
AI Performance (TOPS) | 21 | 21 | 20 | 40 |
Power | 10 – 20 Watts | 10 – 25 Watts | 5 – 10 Watts | 7 – 15 Watts |
Downloads | [ Datasheet ] | [ Datasheet ] | [ Datasheet ] | [ Datasheet ] |
Has cryptochip | YES [ PDF ] | YES [ PDF ] | YES [ PDF ] | YES [ PDF ] |
GUSTAV Quadro
GUSTAV Quadro supports 4 Orin NX or Xavier NX embedded GPU.
Every slot has a storage option of 8 Terabytes. In total you can host this device up to 32 terabytes of data.
GUSTAV QUADRO
GUSTAV Quadro | 4 x EMBEDDED GPU |
GPU (CUDA-Cores) | 1024 – 4048 for each GPU |
AI Performance (TOPS) | 100 for each GPU |
Power | 40-160 Watts (1 till 4 GPU) |
Downloads | [ DATASHEET UNDER NDA ] |
Has cryptochip | YES [ PDF ] |
GUSTAV Xavier Series
GUSTAV AGX Xavier and NX series enable new levels of compute density, power efficiency, and AI inferencing capabilities at the edge. Jetson AGX Xavier ships with configurable power profiles preset for 10W, 15W, and 30W, and Jetson AGX Xavier Industrial ships with profiles preset for 20W and 40W. These power profiles are switchable at runtime, and can be customized to your specific application needs.
GUSTAV Xavier NX
GUSTAV Xavier Specifications | NX Xavier 8 GB | NX Xavier 16 GB |
GPU (CUDA-Cores) | 384 | 384 |
AI Performance (TOPS) | 21 | 21 |
Power | 10 – 20 Watts | 10 – 20 Watts |
Downloads | [ Datasheet ] | [ Datasheet ] |
Has cryptochip | YES [ PDF ] | YES [ PDF ] |
GUSTAVi Series
GUSTAVi is used worldwide for the industrial areas of SmartCity, Train or alternatively for production monitoring. The power supply is controlled via an external relay and a separate microcontroller (MC). The voltage is between 24-48 volts. We have options for RTK GNSS (GPS), LTE Modem and SSD storage. GUSTAVi is based on NVIDIA Jetson Xavier NX 8 or 16 GB versions.
GUSTAVi XAVIER NX
GUSTAVi ORIN NX
GUSTAVi NX Specifications | Xavier NX 8 GB | Xavier NX 16 GB | NX Orin NX 8 GB | Orin NX 16 GB |
GPU (CUDA-Cores) | 384 | 384 | 1024 | 1024 |
AI Performance (TOPS) | 21 | 21 | 70 | 100 |
Power | 10 – 20 Watt | 10 – 20 Watt | 10W – 25W | 10W – 20W |
Downloads | [ Datasheet ] | [ Datasheet ] | [ Datasheet ] | [ Datasheet ] |
Has cryptochip | YES [ PDF ] | YES [ PDF ] | YES [ PDF ] | YES [ PDF ] |
GUSTAV Nano and TX2 Series
These modules are our low-cost GPUs and offer sufficient performance at a great price-performance ratio.
GUSTAV Nano
GUSTAV TX2
GUSTAV NANO & TX2 Specifications | Nano 4 GB | TX2 4 GB |
GPU (CUDA-Cores) | 128 | 256 |
AI Performance (TOPS) | 0.472 | 1.33 |
Power | 5 – 10 Watt | 7.5 – 15 Watt |
Downloads | [ Datasheet ] | [ Datasheet ] |
Has cryptochip | YES [ PDF ] | YES [ PDF ] |
Powerful Software
We support a variety of tools for NVIDIA Jetson platform. Learn more about our software development kits.
